| BRAND | MORTAR 1 | MORTAR 2 | Mortar for Insulating Bricks |

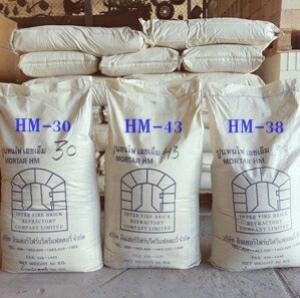

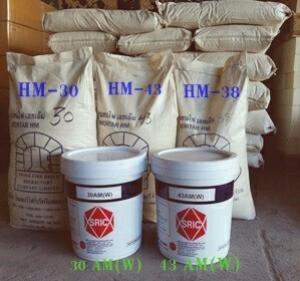

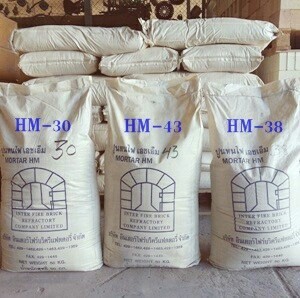

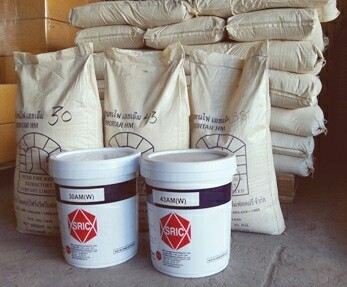

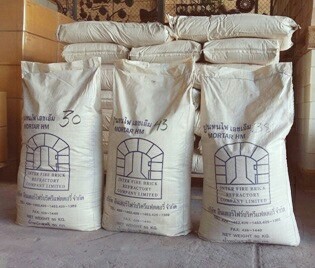

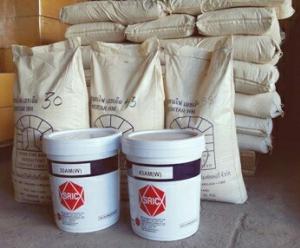

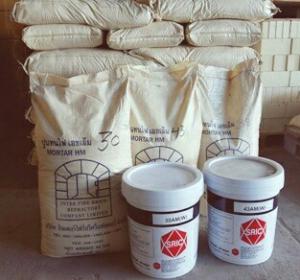

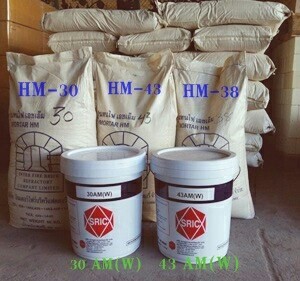

| PROPERTIES | HM-30 | HM-32 | HM-34 | HM-43 | HM-36 | HM-38 | AM-30W | AM-43W | PM-80 |
|  |  |  |  |  |  |  |  |  |  |
| PHYSICAL DATA (Typical) |  |  |  |  |  |  |  |  |  |
| Refractoriness,SK (Seger Cone) | 30 | 32 | 34 | 34 | 36 | 37 | 29 | 32 | 38 |
| Approximate. Amount Required per 1000,9" |  |  |  |  |  |  |  |  |  |
| Equivalent (Thinly Troweller Joints) kgs. | 140-180 | 140-180 | 160-200 | 160-200 | 170-210 | 165-210 | 180-230 | 160-200 | 180-270 |
| Approximate Amount of Water for Trowelling |  |  |  |  |  |  |  |  |  |
| Consistency (Dry only) Litres/50kg. | 20-25 | 20-25 | 20-25 |  |  |  | 20-25 | 20-25 | 20-25 |
| Modulus of Rupture at joints, After Drying |  |  |  |  |  |  |  |  |  |
| at 110 oC,kg/cm2 |  |  |  |  |  |  | 15-30 | 15-30 |  |
| Refractoriness Test |  |  |  |  |  |  |  |  |  |
| Mortar does not squeeze or flow from joints |  |  |  |  |  |  |  |  |  |
| when heated at, oC oC | 1400 | 1400 | 1600 | 1600 | 1600 | 1600 |  |  |  |
|  |  |  |  |  |  |  |  |  |  |
| CHEMICAL ANALYSIS, % Approx. |  |  |  |  |  |  |  |  |  |
| Silica (SiO2) % | 63.5 | 56.7 | 51.2 | 50.0 | 31.4 | 27.2 | 54.1 | 47.9 | 11.4 |
| Alumina (Al2O3) % | 27.6 | 32.1 | 40.3 | 43.6 | 62.5 | 70.0 | 35.2 | 46.4 | 80.5 |
| Iron Oxide (Fe2O3) % | 2.2 | 2.0 | 2.0 | 2.0 | 1.9 | 1.2 | 2.0 | 1.9 | 1.5 |
